Computing Halo Orbits

We'll first define some initial guess for a reference state of a periodic orbit of Type A. For this class of periodic orbits, we'll need to specify a position component in the $\hat{x}$- and $\hat{z}$-directions of the synodic (rotating) reference frame (i.e., $r_x$ and $r_z$), as well as a velocity component in the $\hat{y}$-direction ($v_y$). This will correspond to the full state $\mathbf{x} = [r_x, 0.0, r_z, 0.0, v_y, 0.0]^T$, which lies in the $\hat{x}-\hat{z}$ plane with velocity perpendicular to this plane. Note we'll also define the mass parameter for the Earth-Moon system, which is given by $\mu = m_2 / (m_1 + m_2)$ (where here, $m_1$ is the mass of the Earth and $m_2$ is the mass of the Moon).

# CRTBP mass parameter
mu = 1.21506038e-2

# Define initial state guess
rx_guess = 0.8233851820
rz_guess = -0.0222775563
vy_guess = 0.1341841703

We'll now compute the Jacobi integral (the only constant of motion for the CRTBP model) that corresponds to this initial state. Note we'll also load CRTBPNaturalMotion.jl and the StaticArrays.jl package so we can use their fast arrays here (and later).

using CRTBPNaturalMotion
using StaticArrays

C_guess = jacobi_integral(SA[rx_guess, 0.0, rz_guess, 0.0, vy_guess, 0.0], mu)

Finally, we can now construct a TypeAPeriodicOrbit employing our initial guess, which will get corrected to a periodic orbit that satisfies an extra constraint (as a keyword argument). We'll chose a constraint that requires the Jacobi integral of the final orbit to be close to, but not quite the same, as the Jacobi integral corresponding to our initial guess. Note we'll also specify the keyword argument N_cross, which sets the number of times the periodic orbit will pass through the $\hat{x}-\hat{z}$ plane in half and orbital period (i.e., N_cross = 1 means we'll pass through this plane twice if traveling around the full orbit).

halo = TypeAPeriodicOrbit(
    rx_guess, rz_guess, vy_guess, mu;
    N_cross = 1,
    constraint = (:jacobi_integral, C_guess - 0.001),
)
TypeAPeriodicOrbit
  Orbital period:  2.747121257312651 TU
  Arc-length:      0.2912992221099446 DU
  Jacobi integral: 3.1691294679550466
  Stability:       1078.7132863142292
  N_cross:         1

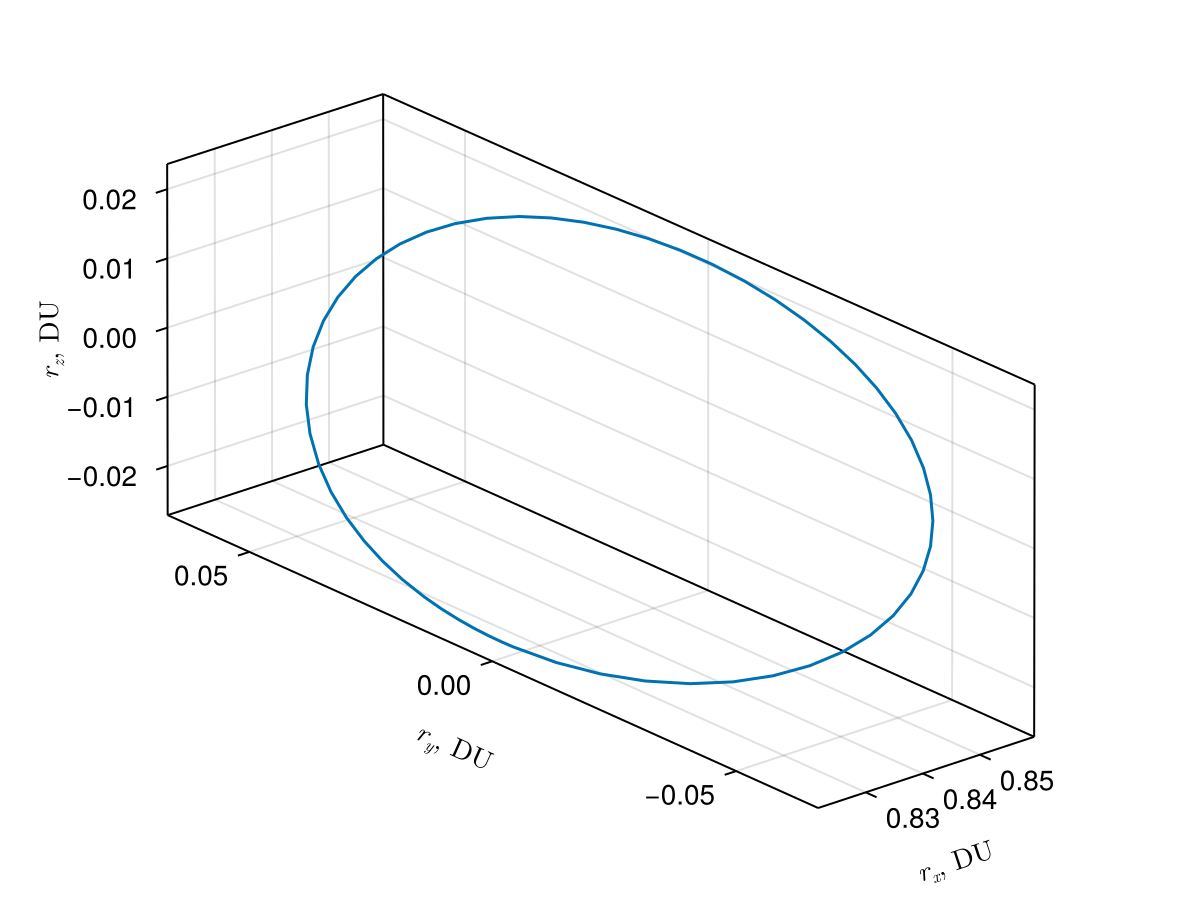

Finally, we have some useful functions for using this TypeAPeriodicOrbit. For now, we'll just use the get_full_orbit function to obtain a DifferentialEquations.jl solution containing the states around the full orbit so we can plot using CairoMakie.jl.

using CairoMakie

traj = get_full_orbit(halo)

fig = Figure();
ax  = Axis3(
    fig[1,1];
    aspect = :data,
    xlabel = L"$r_x$, DU",
    ylabel = L"$r_y$, DU",
    zlabel = L"$r_z$, DU",
)
lines!(ax, traj[1,:], traj[2,:], traj[3,:])
Example block output

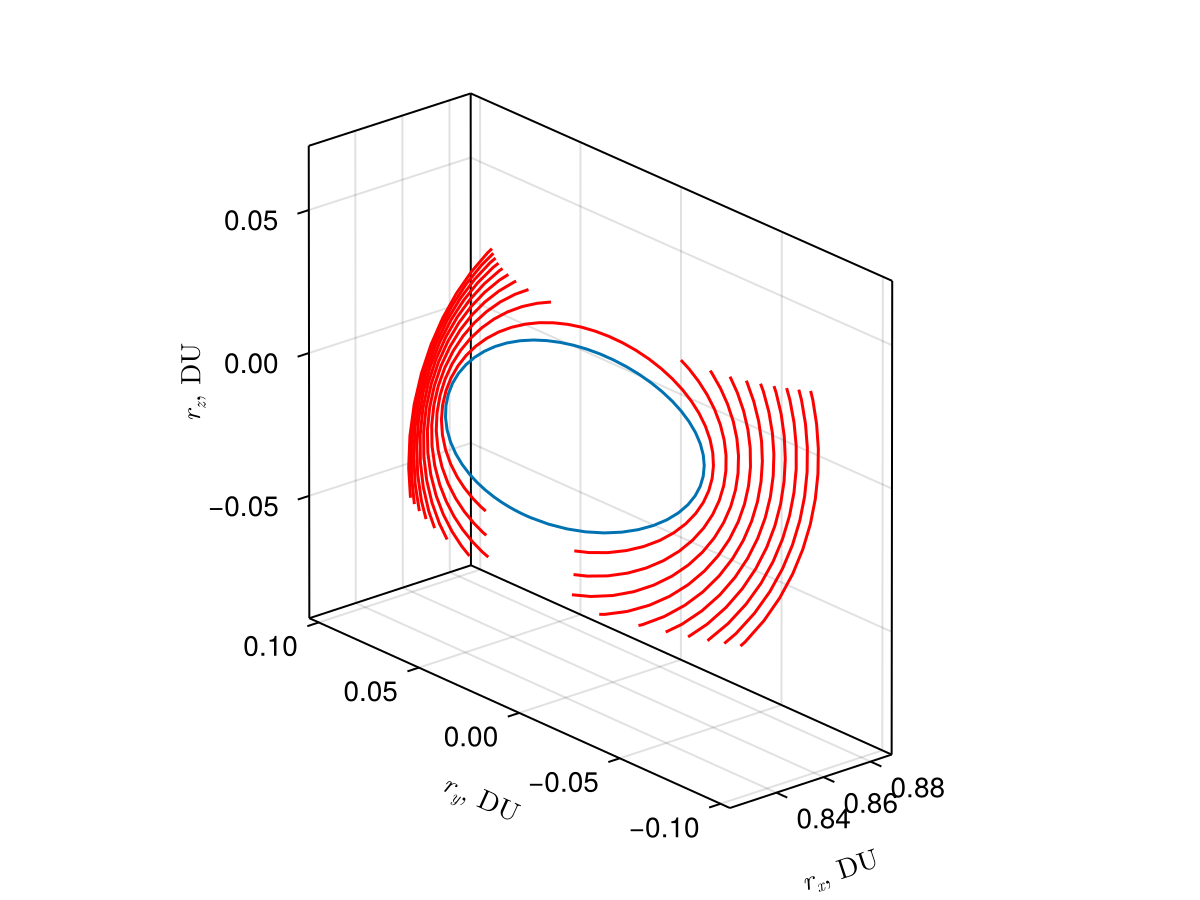

Let's now try to compute a bunch of periodic orbits using a natural continuation based approach, where we'll gradually adjust the value of the constraint while solving for new periodic orbits repeatedly (taking the previous solution as the next initial guess). Note that there are much better methods of performing continuation to compute families of periodic orbit, but this is quick example that is simple to implement.

# Define starting orbit
start_orbit = TypeAPeriodicOrbit(
    rx_guess, rz_guess, vy_guess, mu;
    N_cross = 1,
    constraint = (:jacobi_integral, C_guess),
)

# Set desired rx and number of steps to take
C_final = C_guess - 0.05
n_steps = 100

# Perform continuation in loop
Cs = range(C_guess, C_final; length = n_steps)
orbits = [start_orbit]
for (i, C) in enumerate(Cs)
    new_orbit = TypeAPeriodicOrbit(
        orbits[end];
        constraint = (:jacobi_integral, C)
    )
    push!(orbits, new_orbit)

    # Update our figure
    if mod(i, 10) == 0
        new_traj = get_full_orbit(new_orbit)
        lines!(ax, new_traj[1,:], new_traj[2,:], new_traj[3,:]; color = :red)
    end
end
Example block output
