Querying JPL's CRTBP Poincare Catalog of Periodic Orbits

CRTBPNaturalMotion.jl provides an interface to JPL's CRTBP Poincare catalog of periodic orbits through the exported function get_jpl_orbits. Through several keyword arguments (see the get_jpl_orbits docstring), which directly correspond to the in JPL's web application and API documentation, an OrbitSet of periodic orbits can be obtained for various three-body systems (e.g., Earth-Moon, Sun-Earth, Saturn-Enceladus, etc...).

Earth-Moon Halo orbits

As a simple example, we can obtain the full set of periodic orbits about the $L_1$ Libration point as follows:

using CRTBPNaturalMotion

orbits = get_jpl_orbits(;
    sys     = "earth-moon",
    family  = "halo",
    libr    = 1,
)

OrbitSet with 5731 orbits
	System:            Earth-Moon
	Period range:      7.9951 to 13.8446 days
	Jacobi range:      0.1952 to 3.1743
	Stability range:   1.0000 to 1180.4065

As can be seen, a total of 5731 orbits are contained within the OrbitSet exhibiting a range of different orbital periods, Jacobi constants, and stability values.

Perhaps we're only interested in halo orbits exhibiting a stability index that is less than 5, with orbital periods between 10 and 11 days. We can refine our query using some additional keyword arguments as follows:

stable_orbits = get_jpl_orbits(;
    sys         = "earth-moon",
    family      = "halo",
    libr        = 1,
    periodmin   = 10.0,
    periodmax   = 11.0,
    periodunits = "d",
    stabmax     = 5.0,
)

OrbitSet with 138 orbits
	System:            Earth-Moon
	Period range:     10.0059 to 10.7603 days
	Jacobi range:      2.9017 to 3.0009
	Stability range:   1.2917 to 4.9677

The returned OrbitSet is implemented as a sub-type of Julia's AbstractVector{T} and therefore functions such as length(::OrbitSet) and indexing, i.e.,

first_orbit = stable_orbits[1]

GeneralPeriodicOrbit
  Orbital period:  10.43428986161004 days
  Arc-length:      290286.38967424317 km
  Jacobi integral: 2.90165039860189
  Stability:       4.96768347393297

and

stable_orbits_subset = stable_orbits[[3,5,10,12]]

OrbitSet with 4 orbits
	System:            Earth-Moon
	Period range:     10.3453 to 10.4183 days
	Jacobi range:      2.9025 to 2.9064
	Stability range:   4.4793 to 4.8779

can be employed to obtain a single GeneralPeriodicOrbit or a subset of the original OrbitSet. Note that an OrbitSet is essentially a Vector{GeneralPeriodicOrbit} with some extra information about the three-body System and the contained periodic orbits.

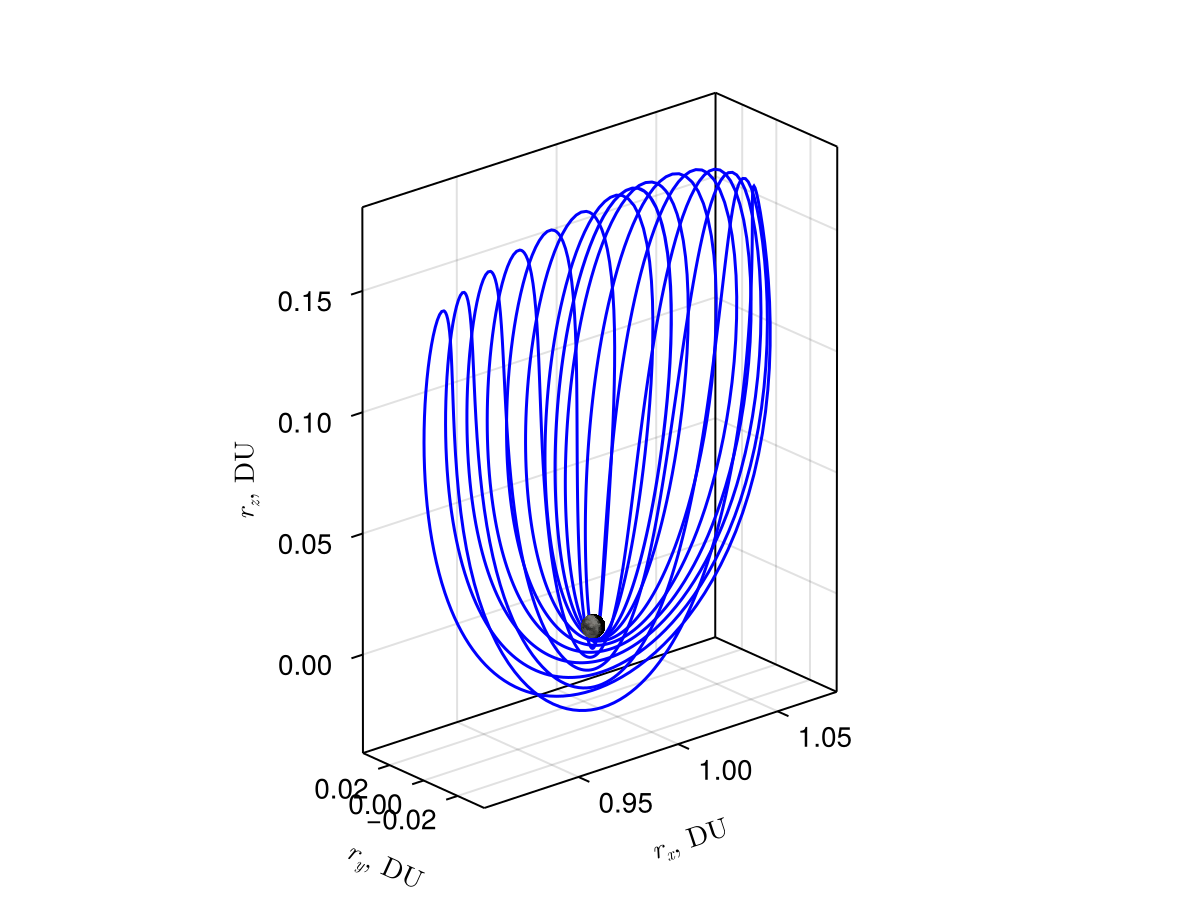

We can obtain a full trajectory for the periodic orbit as shown in Computing Halo Orbits using the get_full_orbit method. For example, several orbits within stable_orbits can be plotted using CairoMakie.jl as follows:

using CairoMakie

fig = Figure(; size = (700, 1000))
ax  = Axis3(
    fig[1,1];
    aspect = :data,
    xlabel = L"$r_x$, DU",
    ylabel = L"$r_y$, DU",
    zlabel = L"$r_z$, DU",
)

# Plot every 10 orbits
for i in 1:10:length(stable_orbits)
    traj = get_full_orbit(stable_orbits[i])
    lines!(ax, traj[1,:], traj[2,:], traj[3,:]; color = :blue)
end

#  Plot the moon
import FileIO
plot_moon(ax, orbit_set) = begin # Defining a function that we can use later
    moon = Sphere(
        Point3f(1.0 - orbit_set.system.mass_ratio, 0.0, 0.0),
        orbit_set.system.radius_secondary / orbit_set.system.DU
    )
    mesh!(ax, moon; color = FileIO.load(CairoMakie.assetpath("moon.png")))
end
plot_moon(ax, stable_orbits)

Quick examples

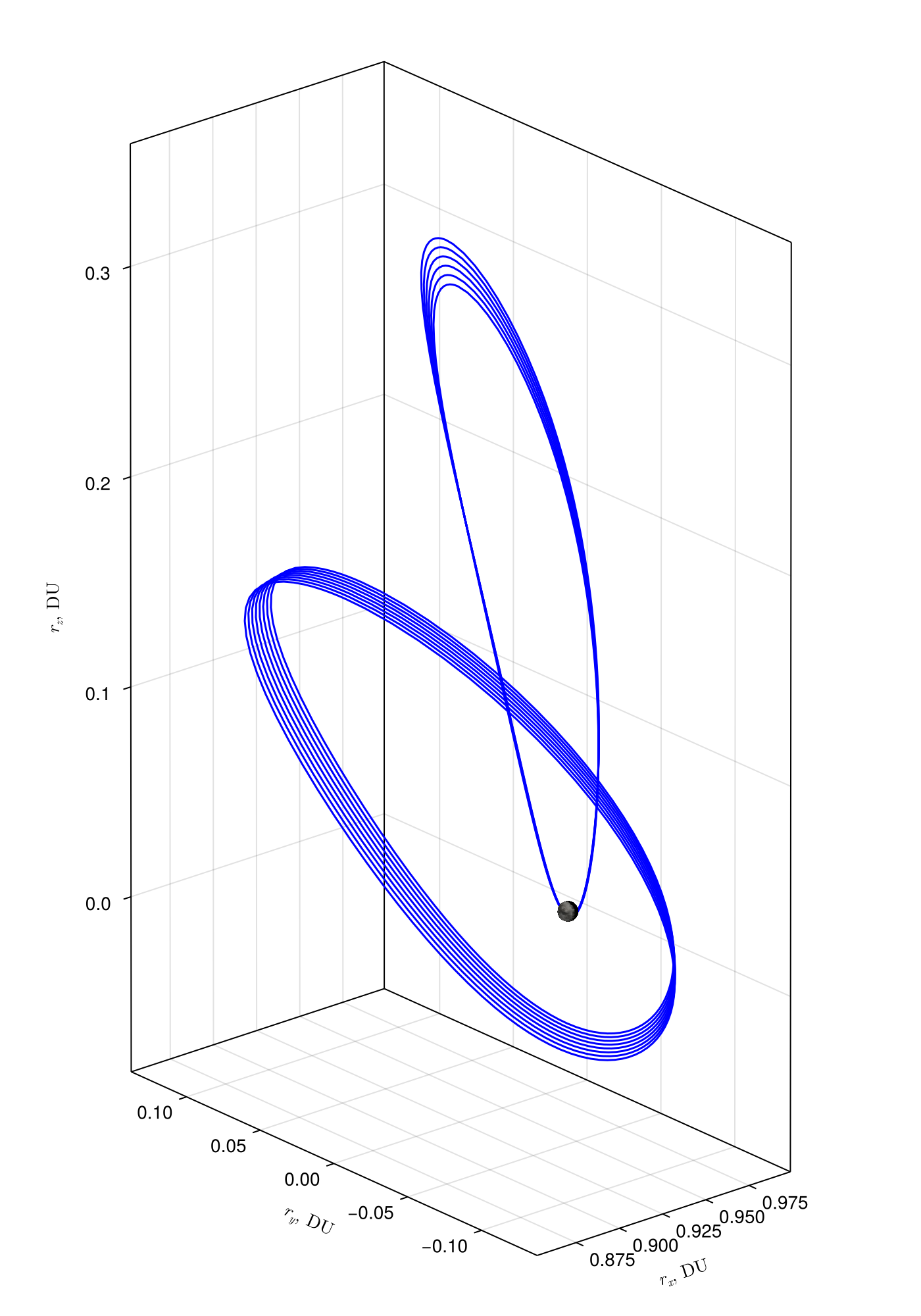

Plotting a subset of the Earth-Moon Butterfly orbits

butterfly_orbits = get_jpl_orbits(;
    sys         = "earth-moon",
    family      = "butterfly",
    periodmin   = 12.0,
    periodmax   = 15.0,
    periodunits = "d",
)

butterfly_fig = Figure()
butterfly_ax  = Axis3(
    butterfly_fig[1,1];
    aspect = :data,
    xlabel = L"$r_x$, DU",
    ylabel = L"$r_y$, DU",
    zlabel = L"$r_z$, DU",
)

# Plot every 100 orbits and moon
for i in 1:100:length(butterfly_orbits)
    traj = get_full_orbit(butterfly_orbits[i])
    lines!(butterfly_ax, traj[1,:], traj[2,:], traj[3,:]; color = :blue)
end
plot_moon(butterfly_ax, butterfly_orbits)

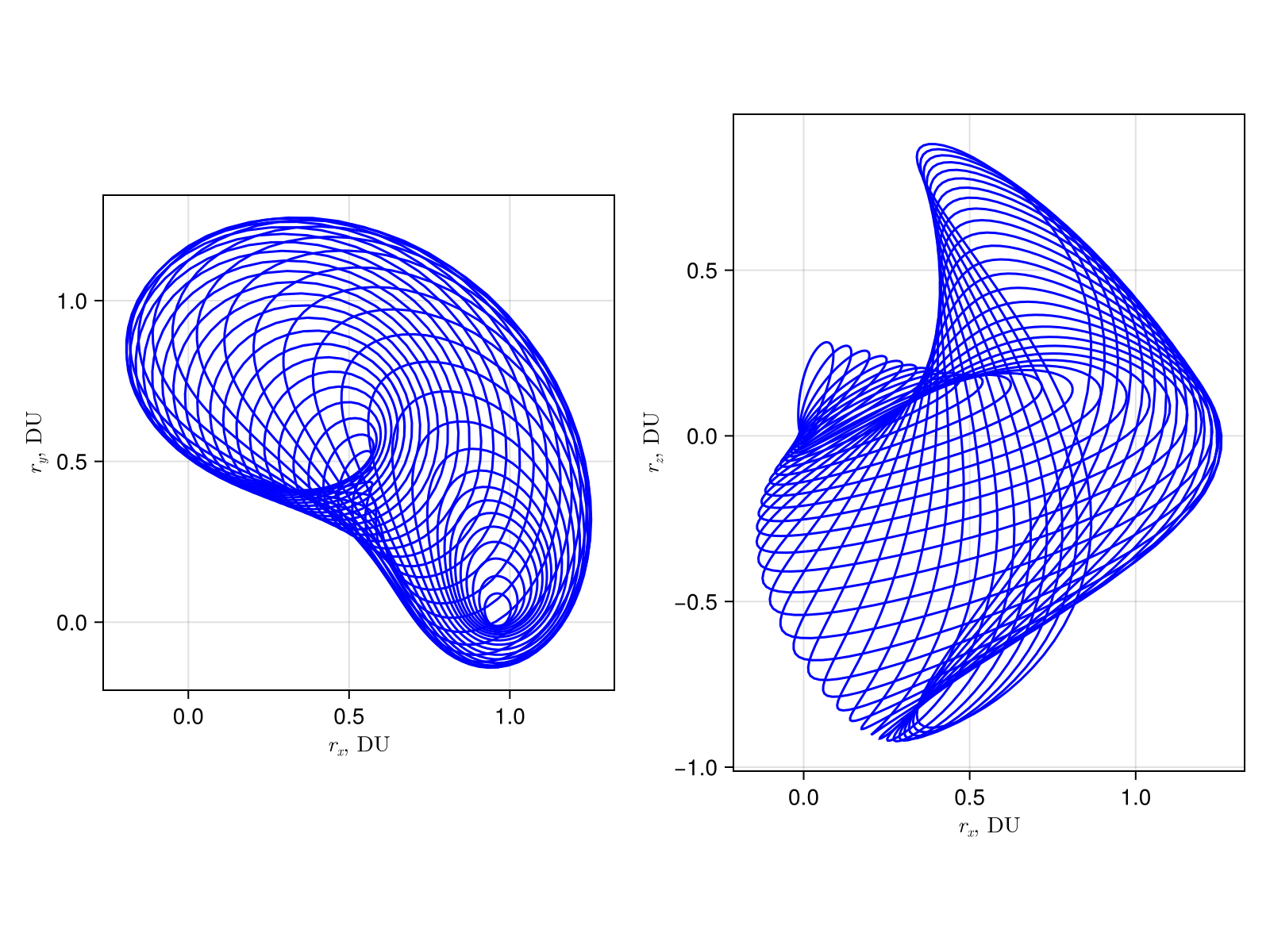

Plotting all of the Earth-Moon Axial orbits about $L_4$

axial_orbits = get_jpl_orbits(;
    sys         = "earth-moon",
    family      = "axial",
    libr        = 4,
)

axial_fig = Figure(; size = (800,600))
axial_ax_xy  = Axis(
    axial_fig[1,1];
    aspect = DataAspect(),
    xlabel = L"$r_x$, DU",
    ylabel = L"$r_y$, DU",
)
axial_ax_xz  = Axis(
    axial_fig[1,2];
    aspect = DataAspect(),
    xlabel = L"$r_x$, DU",
    ylabel = L"$r_z$, DU",
)

# Plot every 200 orbits and moon
for i in 1:200:length(axial_orbits)
    traj = get_full_orbit(axial_orbits[i])
    lines!(axial_ax_xy, traj[1,:], traj[2,:]; color = :blue)
    lines!(axial_ax_xz, traj[2,:], traj[3,:]; color = :blue)
end
